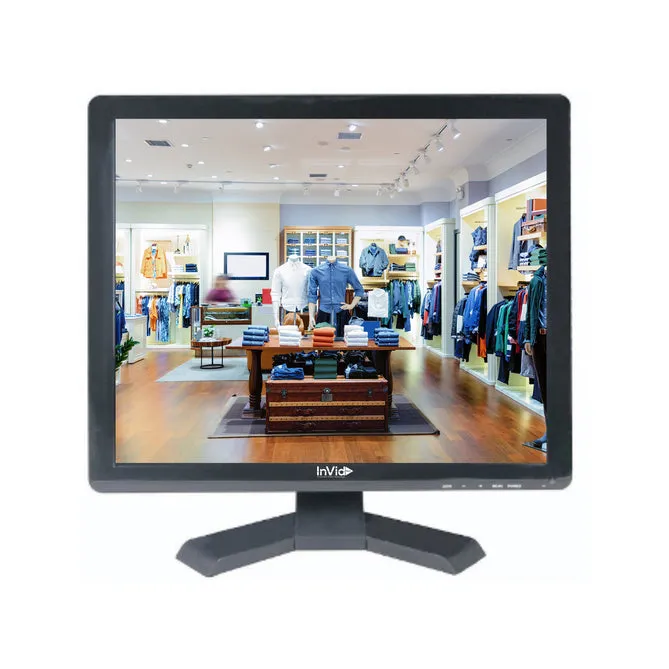

17” HD 1280 x 1024 LED Monitor, HDMI, VGA, Looping BNC Inputs
Features
- High Definition 1280 x 1024 LED Image
- Suitable for All Video Surveillance and Security applications
- Bright Illuminated Panel with 170° Viewing Angle
- HDMI, VGA, BNC (2-Input & 1-Output)
- 16.7 Million Color Capacity
-
VESA 75x75
Model |
IMHD-17AN |
|
Screen Size |
17'’ |
|
Active Display Area (W x H) |
337.920 × 270.336 mm |
|
Display Mode |
4:3 |
|
LED Type |
TFT-LED |
|
Resolution |
1280 × 1024 |
|
Display Color |
16.7M |
|
Pixel Pitch (H x V) |
0.264 × 0.264 mm |
|
Brightness(nits) |
250cd/m² |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle |
170(H) /170(V) |
|
Response Time |
5ms |
|
Backlight |
LED |
Input & Output |
|
|
HDMI 2.0 |
1 |
|
VGA |
1 |
|
BNC input |
2 |
|
BNC output |
1 |
|
Speaker |
2x3W(Stereo) |
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
|
3D comb filter |
Yes |
|
Video Noise Reduction |
Yes |
Power & Mount Way |
|
|
Power |
DC12V ,50/60Hz |
|
Working Temperature |
-22°F ~ 185°F (-30C° ~ 85C°) |
|
Power Consumption |
≤15W |
|
Menu |
Chinese/English (other languages supported) |
|
Mounting/Weight |
Stand mount, VESA mount/2.5kg 75x75 |
|
MTBF |
50,000 Hours |
|
Dimension size |
15.2 x 12.4 x 1.8 in (385*315*45mm) |
