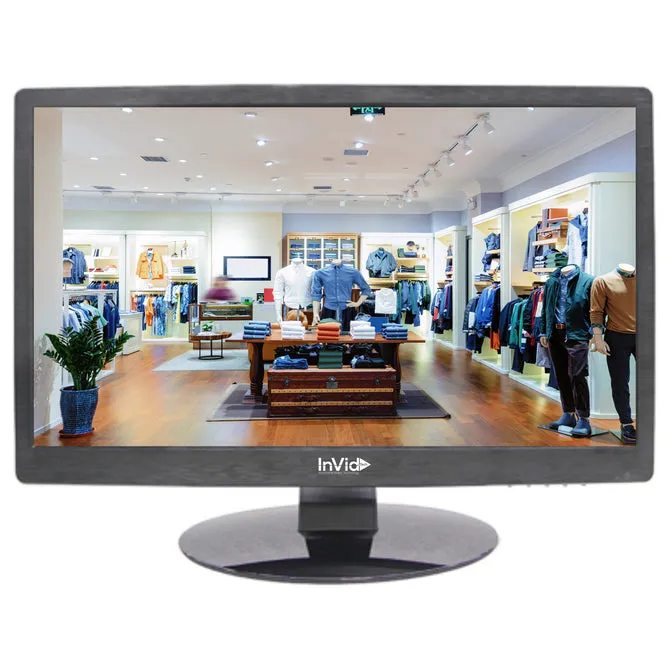

19.5” Full HD 1920 x 1080 LED Monitor HDMI, VGA, Looping BNC Inputs & Outputs
Features
- Suitable for All Video Surveillance and Security applications
- Commercial Grade - Designed for 24/7 Operation
- Full High Definition Quality: 1920 x1080
- Bright LED Illuminated Panel
- Inputs: HDMI, VGA, BNC
- Outputs: BNC
- 16.7 Million Color Capacity
-
VESA 100 x 100
Mode Name |
IMHD-20HVBN |
|
Screen Size |
19.5'’ |
|
Active Display Area (W x H) |
386.32 × 251.0 mm |
|
Display Mode |
16:9 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 × 1080 |
|
Display Color |
16.7M |
|
Pixel Pitch (H x V) |
0.248 × 0.248 mm |
|
Brightness(nits) |
350cd/ |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (H/V) |
178 / 178 |
|
Response Time |
5ms |
|
Backlight |
LED |
Input & Output |
|
|
HDMI 2.0 |
1 |
|
VGA |
1 |
|
BNC input |
2 |
|
BNC output |
1 |
|
Speaker |
2x3W(Stereo) |
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
|
3D comb filter |
Yes |
|
Video Noise Reduction |
Yes |
Power & Mount Way |
|
|
Power |
110v |
|
Working Temperature |
-22°F ~ 185°F (-30C° ~ 85C°) |
|
Power Consumption |
20W |
|
Menu |
Chinese/English(other languages supported) |
|
Mounting |
Stand mount, VESA mount 100x100 |
|
MTBF |
50000 Hours |
|
Dimension size |
16.2 x 11.2 x 1.9 in (412*285*47m) |
Accessories |
|
|
Included Accessories |
Industrial PSU,Screw, Cable holder, Quick start guide |
