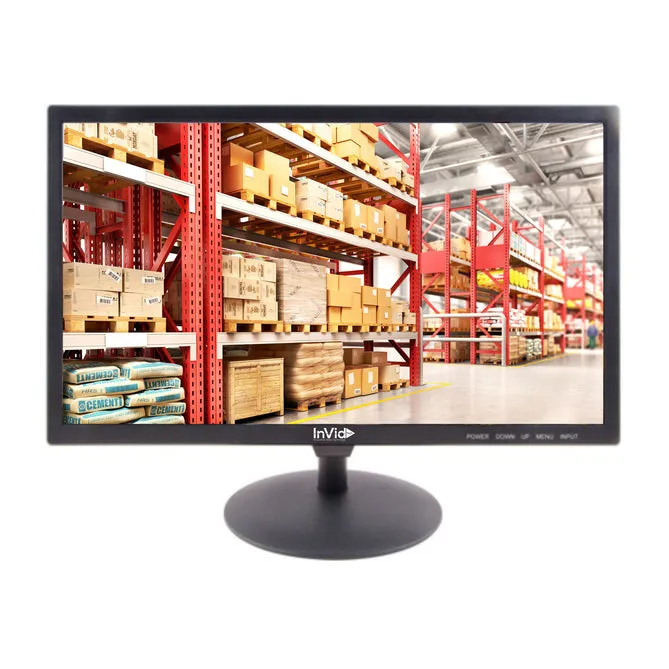

24” Full HD 1920 x 1080 LED Monitor HDMI 2.0, VGA, Looping BNC Inputs & Outputs
Features
- Suitable for All Video Surveillance and Security applications
- Commercial Grade - Designed for 24/7 Operation
- 1920 x1080 Resolution
- LCD Panel
- Inputs: HDMI, VGA, BNC
- Outputs: BNC
- 16.7 Million Color Capacity
-
VESA Mount 100x100
Display Characteristics |
|
|
Screen Size |
24'’ |
|
Active Display Area (W x H) |
521.28 × 293.22 mm |
|
Display Mode |
16:10 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 × 1080 |
|
Display Color |
16.7M |
|
Pixel Pitch (H x V) |
0.2715 × 0.2715 mm |
|
Brightness(nits) |
300cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle |
178(H) /178(V) |
|
Response Time |
5ms |
|
Backlight |
LED |
Input & Output |
|
|
HDMI 2.0 |
1 |
|
VGA |
1 |
|
BNC input |
2 |
|
BNC output |
1 |
|
Speaker |
2x3W(Stereo) |
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language |
|
3D comb filter |
YES |
|
Video Noise Reduction |
YES |
Power & Mount Way |
|
|
Power |
AC100-240V ,50/60Hz |
|
Working Temperature |
-22°F ~ 185°F (-30°C ~ 85°C) |
|
Power Consumption |
25W |
|
Menu |
Chinese/English(other languages supported) |
|
Mounting/Weight |
Stand mount, VESA mount/4kg 100x100 |
|
MTBF |
50000Hours |
|
Dimension size |
21.9 x 13.5 x 1.9 in (555*343*49mm) |
Accessories |
|
|
Included Accessories |
Industrial PSU,Screw, Cable holder, Quick start guide |
