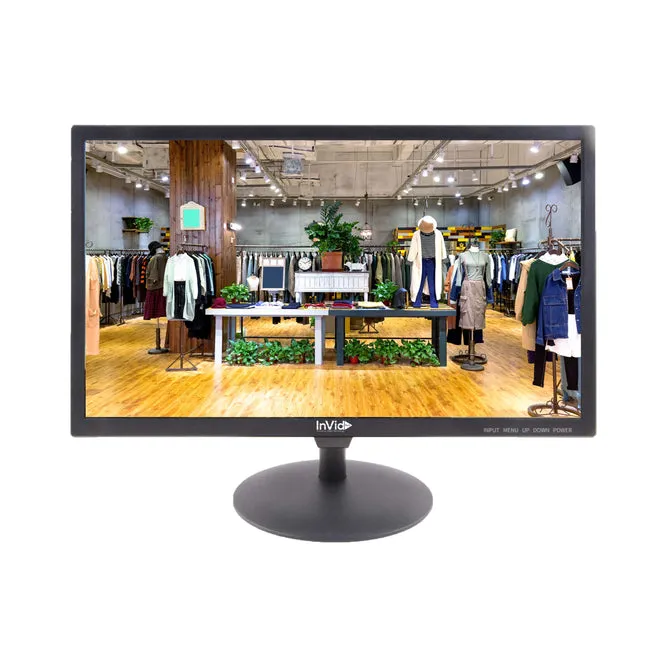

24” Full HD 1920 x 1080 LED Monitor, HDMI, VGA, RJ 45 PoE Inputs, RJ 45 Signal Output, PoE Powered Monitor
Features
- Suitable for All Video Surveillance and Security applications
- Full High Definition Quality: 1920 x1080
- LED Illuminated Panel with 178° Viewing Angle
- Inputs 2: HDMI, VGA, RJ 45 PoE
- Outputs: RJ 45 (Non PoE, 12VDC/ 1 Amp
- Powered by DC12V or PoE . A PoE switch or injector is required. Minimum of 30-watts required, 60-watts recommended when using
- the built-in 12VDC output for devices.
- Additional LAN Port that does not have PoE. Works similarly to a single port unmanaged switch. Extend your network and connect a networkable device.
- Built-in DC12V port with 1-Amp output If using PoE to power the monitor,
- this port can be used to power devices such as cameras that use 12v power up to 1 amp.
- USB powered output to connect HDMI media and other USB products. Perfect for retail.
- 16.7 Million Color Capacity
-
VESA Mount 100x100
Model Name |
IMHD-24POE |
|
Screen Size |
24'’ |
|
Active Display Area (W x H) |
521.28 × 293.22 mm |
|
Display Mode |
16:9 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 × 1080 |
|
Display Color |
16.7M |
|
Pixel Pitch (H x V) |
0.248 × 0.248 mm |
|
Brightness(nits) |
300cd/M 2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (H/V) |
178/178 |
|
Response Time |
5ms |
|
Backlight |
LED |
Input & Output |
|
|
HDMI 2.0 |
2 |
|
VGA |
1 |
|
RJ 45 PoE input |
1 |
|
RJ 45 signal output |
1 (Non PoE) |
|
USB output (max 5V,3A) |
1 |
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock,phase, Color, Language |
|
3D comb filter |
Yes |
|
Video Noise Reduction |
Yes |
Power & Mount Way |
|
|
Power |
DC12V, 3A (Included) 50/60Hz or POE Input AT Standard |
|
Working Temperature |
-22°F ~ 185°F (-30°C ~ 85°C) |
|
Power Consumption |
<25W |
|
Menu |
Chinese/English(other languages supported) |
|
Mounting/Weight |
Stand mount, VESA mount/3.5kg 100x100 |
|
MTBF |
50000Hours |
|
Power Output |
12VDC, 1 Amp Max |
|

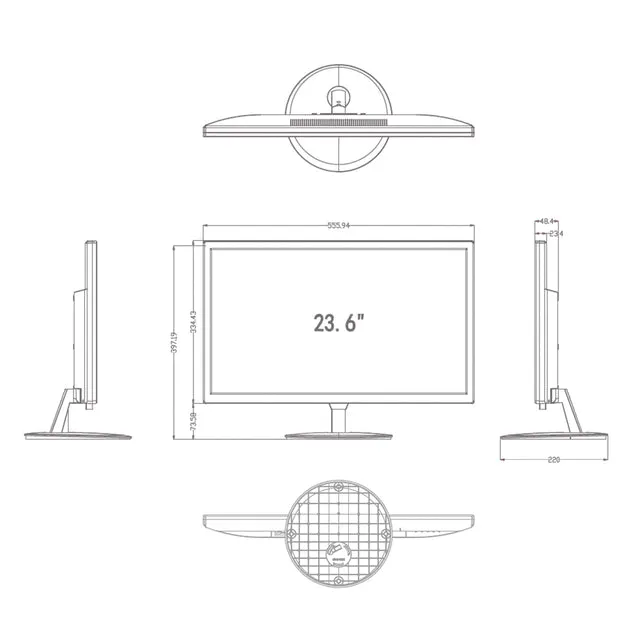

Dimension size |
21.9 x 13.5 x 1.9 in (555*343*49mm) |
