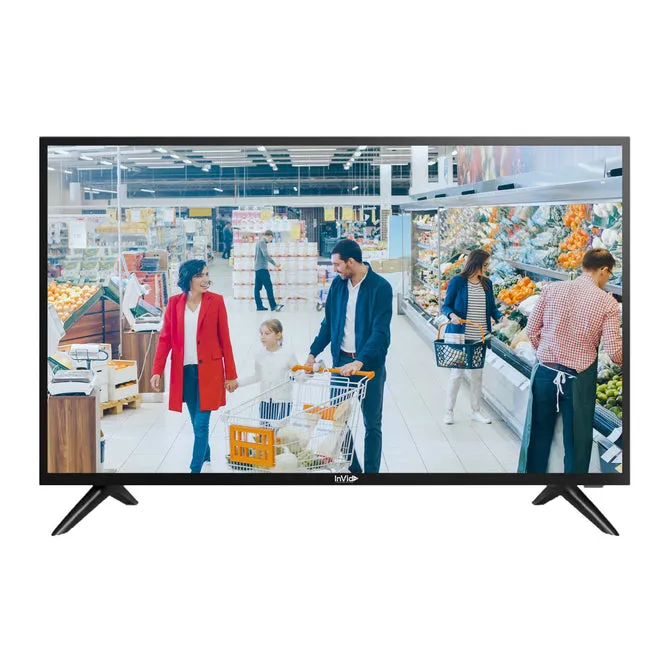

32” Full HD 1920 x 1080 LED Monitor, HDMI, VGA, BNC HD Inputs (TVI/AHD/CVI) BNC Loop Out
Features
- Suitable for All Video Surveillance and Security applications
- Full High Definition Quality: 1920 x1080
- Bright LED Illuminated Panel
- Inputs: HDMI, VGA, HD BNC Up to 8mp
- Outputs: HD BNC (TVI/AHD/CVI/CVBS)
- Built-in Speakers
-
VESA Mount 200 x 100
Model Name |
IMHD-32HDLOOP |
|
Screen Size |
32'’ |
|
Active Display Area (mm) |
697.6845mm(W)×392.256mm(H) |
|
Display Mode |
16:9 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 × 1080 |
|
Display Color |
1.073G |
|
Pixel Pitch(mm) |
0.294(H)×0.294(V) |
|
Brightness(nits) |
350cd/m 2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle |
178(H) /178(V) |
|
Response Time |
5ms |
|
Backlight |
LED |
|
Speaker |
Yes |
Input & Output |
|
|
HDMI 2.0 |
1 |
|
VGA |
1 |
|
BNC Output |
1 |
|
BNC Output Cascading |
HD Analog, 2 Monitors Max |
|
CVBS, 3 Monitors Max |
|
|
BNC Input |
1 |
|
TVI/CVI/AHD/CVBS Resolution |
TVI: 8MP/5MP/4MP/2MP up to 300m AHD: 8MP/5MP/4MP/2MP up to 500m CVI: 4MP/2MP up to 500m |
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language |
|
3D Comb filter |
Yes |
|
Video Noise Reduction |
Yes |
Power & Mount Way |
|
|
Power |
AC100V~240V,50/60Hz |
|
Working Temperature |
-22°F ~ 185°F (-30°C ~ 85°C) |
|
Power Consumption |
<35W |
|
Net Weight |
8.8 lbs (4kg) |
|
Gross Weight |
11 lbs (5kg) |
|
Menu |
Chinese/English(other languages supported) |
|
Mounting |
Stand mount, VESA mount 200 x 100 |
|
MTBF |
50000Hours |
|
Stand included |
Yes |
|
Certifications |
CE , FCC and UL certificates |
|
Dimension size |
29.1 x 18.8 x 3.6 in (738*478*92mm) |
Accessories |
|
|
Included Accessories |
Industrial PSU,Screw, Cable holder, Quick start guide |
