Product Details
＋

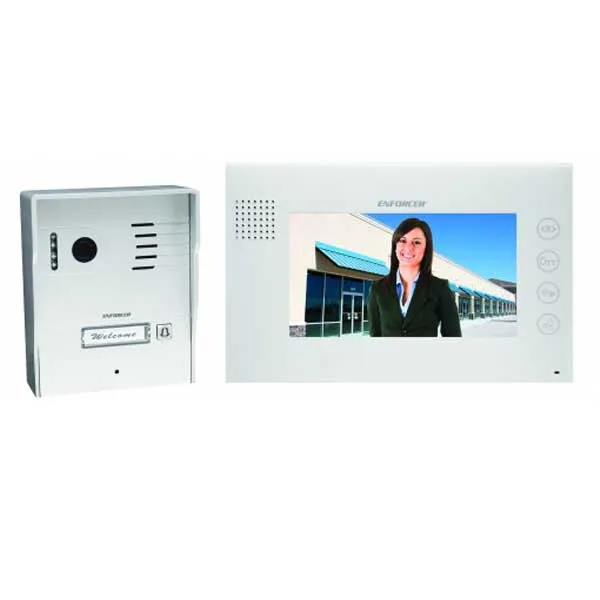

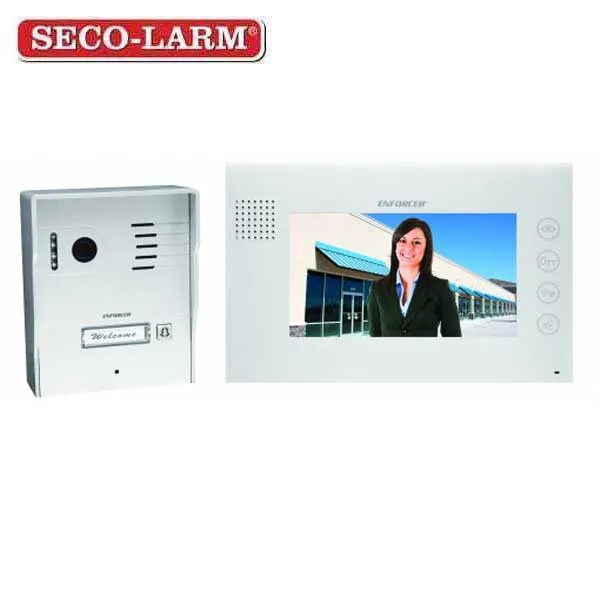

The ENFORCER Hands-Free Video Door Phone displays a color image of the visitor in real time on the phone's monitor, while a built-in microphone and speaker on the camera unit let users remotely and securely communicate with visitors and unlock doors and gates from the monitor. Authorized visitors can be granted entry with the push of a single button from inside the protected premises.
- Simple 2-wire connection
- Remotely and securely talk to visitors and unlock doors, gates, etc. from the monitor
- Easily connect 2 additional monitors and an additional camera
- Camera has four IR LEDs for nighttime operation
- Built-in microphone and speaker for hands-free two-way communication
- Soft-touch button operation
- Adjustable color tone, brightness, speaker, and ringer volume
- 700 TV Lines resolution, large 7" screen
Specifications
| Display | 7" Color TFT |
| Operating voltage | 18VDC |
| Relock delay | 5 seconds |
| Weight | Monitor: 1-lb, 2-oz (560g), Camera: 1-lb, 6-oz (750g) |
| Current draw | Monitor: Active: 555mA, Standby: 20mA Camera: 150mA |
| Dimensions | Monitor: 9-1/2"x6-5/16"x1" (241x161x25 mm) , Camera: 4-7/16"x5-3/8"x2-1/16" (112x136x52 mm) |
| Type | Color camera |
| CMOS | 1/3" CMOS sensor |
| Resolution | 700 TV lines |
| Lens | 2.1mm |
| Relay output | 3A@30VDC max. dry contact |
| Operating temperature | -13°~149°F (-25°~65°C) |
